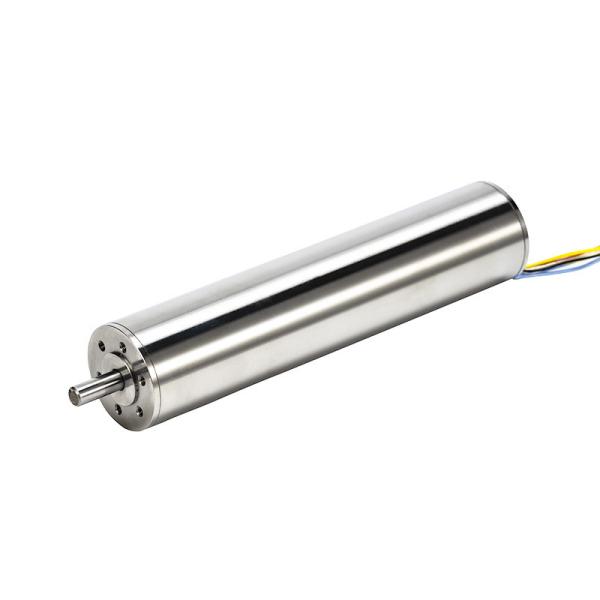

Model: PM32142C DC Slotless Brushless Motors- 4 Pole Rotor
Typical Applications:
1. Aerospace and Defense:
- Satellites and Spacecraft- slotless brushless motors are used for
various functions like antenna pointing systems.
- Unmanned Aerial Vehicles (UAVs)- slotless brushless motors are
often used in the propulsion systems.
2. Medical Equipment:
- Surgical Robots- slotless brushless motors are used to control the movement of the robotic arms.
- Diagnostic Equipment: In medical imaging devices such as MRI machines, slotless brushless motors are used in the motion control systems for components like the patient table.
3. Industrial Automation:
- High-Precision Positioning Systems: In CNC (Computer Numerical
Control) machines, slotless brushless motors are used for the
precise movement of the cutting tools or workpieces.
- Packaging Machinery: In packaging lines, these motors are used to
drive conveyor belts, filling machines, and labeling machines.
4. Robotics:
- Humanoid Robots: In humanoid robots, slotless brushless motors
are used in the joints to provide the necessary movement.
- Service Robots: For service robots like cleaning robots or
delivery robots, slotless brushless motors are used in the drive
systems.
Motor Technical Data:
| PM32142C Series | Unit | 001 | 002 | |
| 1 | voltage | V | 24 | 48 |
| 2 | Stall Torque | mNm | 568 | 2169.2 |
| 3 | Stall Current | A | 17 | 34.1 |
| 4 | No load speed | rpm | 6863 | 7120 |
| 5 | No load current | A | 0.278 | 0.22 |
| 6 | Rated Speed | RPM | 5215 | 5235 |
| 7 | Rated Current | A | 4.29 | 9.2 |
| 8 | Rated Torque | mNm | 136.4 | 574.4 |
| 9 | Rated Output Power | W | 75 | 306.8 |
| 10 | Terminal resistance | Ohm | 1.41 | 1.41 |
| 11 | Terminal Inductance | mH | 125 | 125 |
| 12 | Back –EMF Constant | mV/rpm | 3.497 | 6.70 |
| 13 | Max Efficiency | % | 78.6 | 85 |
| 14 | Torque coefficient | mNm/A | 33.37 | 63.96 |
| 15 | Speed Constant | rpm/V | 286 | 149 |
| 16 | Max Power Output | W | 102 | 408.7 |
| 17 | Rotor Inertia | g c㎡ | 108.84 | 108.84 |
| Additional information | ||
| ● | number of pole pairs of the rotor | 2 |
| ● | Number of phases | 3 |
| ● | Operating temperature range | -40℃... +150℃ |
| ● | Insulation calss | Class F |
| ● | Motor parameters and shaft size can be made according to the request of customer. | |
| ● | Options: gearbox | |

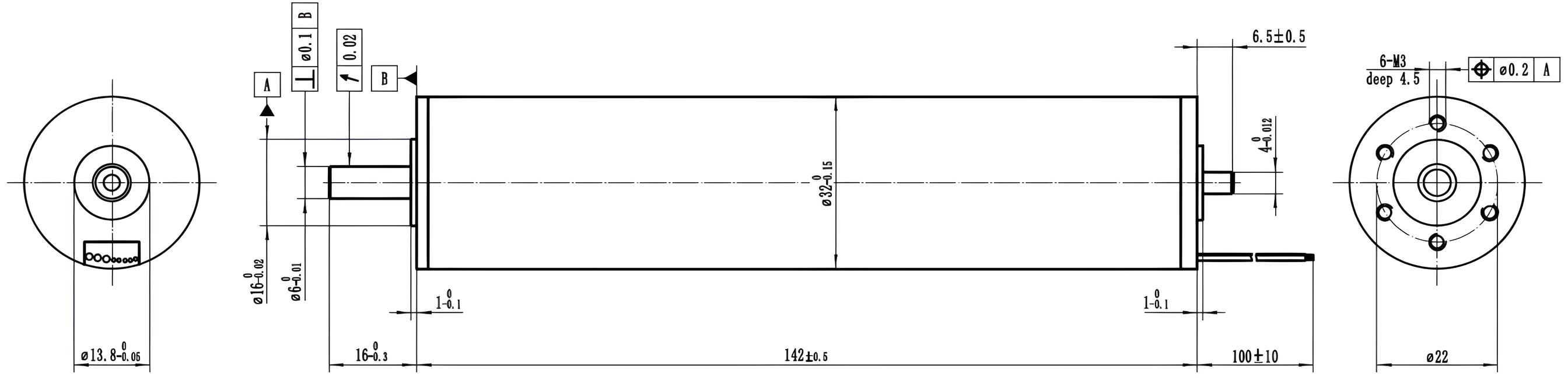

Motor Outline Drawing (mm)
|
|
