    30mm Coreless BLDC Motor 448.9W 162.6N.m 26349RPM 24V 48V

    Ask Lasest Price
    Brand Name : PM
    Model Number : PM3050C
    Certification : CE, ROHS
    Price : Negotiable
    Payment Terms : MoneyGram, Western Union, , T/T
    Supply Ability : 90000PCS per Month
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

    30mm Coreless BLDC Motor 448.9W 162.6N.m 26349RPM 24V 48V

    Model: PM3050C 30mm Coreless BLDC Motor 448.9W 162.6N.m 26349RPM 24V 48V


    Typical Applications:


    1. Aerospace and Defense Applications:
    - Satellites and Spacecraft: Slotless brushless motors play a crucial role in performing diverse functions. For instance, they are employed in antenna pointing systems, enabling accurate orientation of antennas in space.
    - Unmanned Aerial Vehicles (UAVs): These motors are frequently integrated into the propulsion systems of UAVs, facilitating efficient flight and maneuverability.


    2. Medical Equipment:
    - Surgical Robots: Slotless brushless motors are essential for controlling the movement of robotic arms in surgical robots. This allows for highly precise and delicate operations during surgeries.
    - Diagnostic Equipment: In medical imaging devices such as MRI machines, slotless brushless motors are utilized in the motion control systems of components like the patient table. This ensures smooth and accurate positioning of patients during imaging procedures.


    3. Industrial Automation:
    - High-Precision Positioning Systems: In CNC (Computer Numerical Control) machines, slotless brushless motors are responsible for the precise movement of cutting tools or workpieces. This enables the production of high-quality parts with tight tolerances.
    - Packaging Machinery: In packaging lines, these motors power conveyor belts, filling machines, and labeling machines. Their reliable performance ensures the efficient operation of the entire packaging process.


    4. Robotics:
    - Humanoid Robots: Slotless brushless motors are installed in the joints of humanoid robots to provide the necessary motion and flexibility. This allows the robots to mimic human movements more realistically.
    - Service Robots: For service robots like cleaning robots or delivery robots, slotless brushless motors are used in the drive systems. They enable these robots to move around effectively and perform their tasks with ease.


    Motor Technical Data:


    PM3050C SeriesUnit001
    1Rated VoltageV24
    2Stall TorquemNm613
    3Stall CurrentA96
    4No load speedrpm35730
    5No load currentA0.552
    6Rated SpeedRPM26349
    7Rated CurrentA25.84
    8Rated TorquemNm162.65
    9Rated Output PowerW448.9
    10Efficiency at Rated Load%72.5
    11Terminal resistanceOhm0.25
    12Back –EMF ConstantmV/rpm0.669
    13Max Efficiency%86.4
    14Torque coefficientmNm/A6.39
    15Speed Constantrpm/V1493
    16Max Power OutputW576
    17Angular velocityrad/s3753

    Additional information
    number of pole pairs of the rotor1
    Number of phases3
    Operating temperature range-40℃... +150℃
    Insulation calssClass F
    Motor parameters and shaft size can be made according to the request of customer.
    Options: gearbox

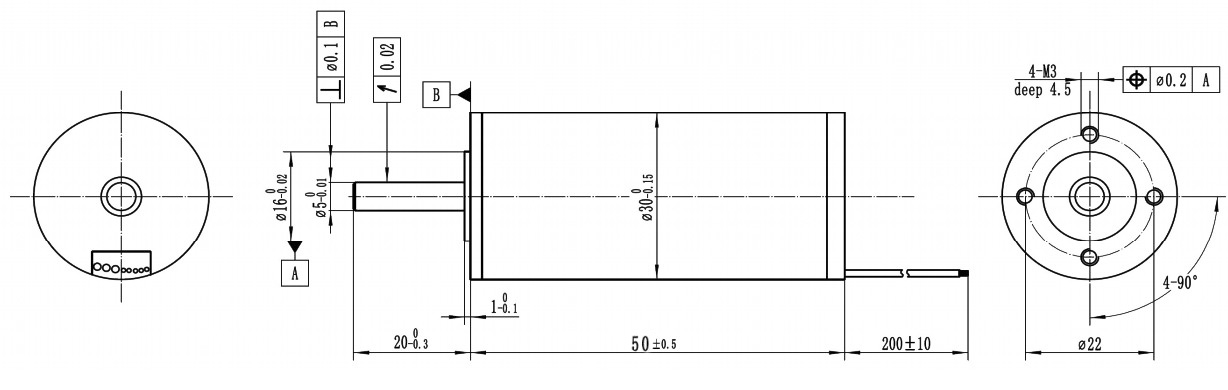

    Motor Outline Drawing (mm)


    30mm brushless dc motor

    30mm bldc motor
