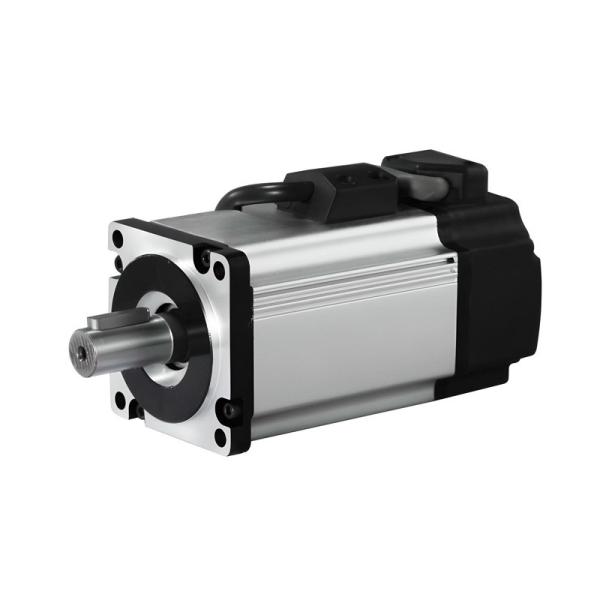

Flange 180mm Servomotor 4000W 5500W 7500W 48N.m 1500rpm Customizable encoder servo motor

Product Tag: 180mm Servo Motor , 180mm Servomotor , 180mm AC Servo Motor , 4000W Servo Motor , 4400W Servo Motor , 5000W Servo Motor , 5500W Servo Motor , 7500W Servo Motor

The Brushless Servo Motors from Panda Electronics feature the following characteristics:

• Special Slot Design: This motor is engineered with an exceptionally low mutual inductance, effectively approaching zero.
• Optimized Heat Dissipation: The advanced thermal management system allows for rapid heat dissipation and a uniform temperature profile.
• Structural Optimization: The motor's architecture is meticulously designed for enhanced performance, boosting both durability and reliability.
• Special Core Design: It operates with minimal noise, vibration, and torque ripple, ensuring a smooth operational experience.
• High Slot Fill Factor: Featuring a larger wire diameter, this motor achieves lower resistance and generates 20% less heat, thanks to its higher slot fill factor.
• Open-Ended Shaft Design: This innovative design accommodates various encoders, expanding customization options for users.
• Optimized Permanent Magnet Design: Advanced rare-earth magnets with high intrinsic coercivity provide robust resistance to demagnetization.
• High-Resolution Encoder: Equipped with a high-resolution encoder, the motor improves positional accuracy by 64 times.
• Advanced Manufacturing Techniques: Proudly manufactured in Japan, this motor ensures exceptional reliability, stability, and consistent performance.
• High-Performance Core: The core is designed for high magnetic load and minimal iron loss, achieving a compact and lightweight form with over 20% size reduction.
• New Magnetic Field Analysis Technology: Featuring a ten-level optimized rotor design, this motor significantly enhances output and supports overloads of 3 to 4 times.
• Supporting Customization: Available in diameters from 40 mm to 180 mm, our Brushless Servo Motors are highly versatile, with customization options to suit various specifications.

Applications of Brushless Servo Motors:

Industrial Automation:

• Robotics (robot arms, pick and place)
• CNC machines
• Assembly lines

Aerospace:

• Flight control systems
• Positioning systems for aircraft

Automotive:

• Power steering systems
• Electric throttle control
• Automatic transmission systems

Consumer Electronics:

• Printers (particularly 3D printers)
• Cameras (autofocus and image stabilization)
• Drones (control of flight dynamics)

Medical Equipment:

• Surgical robots
• MRI machines
• Prosthetic devices

HVAC Systems:

• Control of dampers and valves for heating and air conditioning systems

Textile Industry:

• Sewing machines
• Weaving and knitting machines

Entertainment:

• Animatronics and robotics in films
• Motion control in stage shows

Telecommunications:

• Antenna position control
• Fiber optic alignment systems

Food and Beverage:

• Automated packaging machines
• Food processing equipment

Key Specifications for this Flange Ø180mm Brushless Servo Motor :

• Motor Flange: 181mm
• Rated Voltage: 48V DC to 380V or customized
• Rated Torque: 18.5N.m to 48N.m or Customized
• Rated Speed: 1500rpm or Customized
• Rated Power: 2900W to 7500W or Customized
• Brake or without brake

Remark:

• We offer design and production services for customized servo motors (OEM & ODM).

To see the product catalogue on our Brushless Servo Motors Φ40-180 mm , please

Check Here and download.

Dongguan Panda Electronics Tech Co., LTD is a comprehensive enterprise that integrates the development, design, and manufacturing of high precision Slotless BLDC Motors, Slotted Brushless DC Motors, Brush Motors, DC Gear Motors, and Servo Motors.

Additionally, we offer comprehensive solutions encompassing Motors, Gearboxes, Encoders, Brakes, and Drivers. Our product portfolio finds wide application across various sectors including military, aerospace, medical equipment, electric tools, robotics, industrial automation, and inspection equipment. The R&D and sales teams comprise professionals with extensive experience garnered from reputable industry players.

Armed with profound expertise, they offer tailored recommendations and product selection guidance, crafting unique and highly competitive solutions for diverse industries and clients.

Geographically, our footprint spans developed regions such as North America, Europe, Japan, and South Korea, where we've earned accolades and gratitude from discerning customers.

Please feel free to contact us; we guarantee a response within 8 working hours.
