Flange 60mm Servo Motor 400W 600W 1.9N.m 3000rpm Customizable for Precision Control

Product Tag: 60mm Servo Motor , 60mm Servomotor , 60mm AC Servo Motor , 50W Servo Motor , 100W Servo Motor , 200W Servo Motor , 400W Servo Motor, 600W Servo Motor

The Brushless Servo Motors from Panda Electronics feature the following characteristics:

• Special Slot Design: The motor has an exceptionally low mutual inductance, effectively close to zero.
• Optimized Heat Dissipation: The motor features enhanced thermal management, allowing for faster heat dissipation and a more uniform temperature distribution.
• Structural Optimization: The motor's structure is designed for robust performance, increasing durability and reliability.
• Special Core Design: The motor operates with low noise, low vibration, and minimal torque ripple, resulting in smoother operation.
• High Slot Fill Factor: With a larger wire diameter, the motor has lower resistance and generates 20% less heat due to a higher slot fill factor.
• Open-Ended Shaft Design: This design allows for the installation of various encoders, providing customers with more options.
• Optimized Permanent Magnet Design: Utilizing advanced rare-earth permanent magnet materials with exceptionally high intrinsic coercivity, the motor exhibits strong demagnetization resistance.
• High-Resolution Encoder: Equipped with a high-resolution encoder that increases resolution by 64 times, the motor achieves higher and more precise positioning.
• Advanced Manufacturing Techniques: Manufactured in Japan using cutting-edge technology, the motor boasts high reliability, stability, and consistent performance.
• High-Performance Core: The core is designed for high magnetic load, minimal iron loss, and is compact and lightweight, with a size reduction of over 20%.
• New Magnetic Field Analysis Technology: The motor features a ten-level optimized rotor design, delivering significantly increased output and an overload capacity of 3 to 4 times.
• Supporting Customization: Covering diameters ranging from 40 mm to 180 mm, our Brushless Servo Motors offer versatility, we readily accommodate customization for varying dimensions and specifications.

Applications of Brushless Servo Motors:

Industrial Automation:

• Robotics (robot arms, pick and place)
• CNC machines
• Assembly lines

Aerospace:

• Flight control systems
• Positioning systems for aircraft

Automotive:

• Power steering systems
• Electric throttle control
• Automatic transmission systems

Consumer Electronics:

• Printers (particularly 3D printers)
• Cameras (autofocus and image stabilization)
• Drones (control of flight dynamics)

Medical Equipment:

• Surgical robots
• MRI machines
• Prosthetic devices

HVAC Systems:

• Control of dampers and valves for heating and air conditioning systems

Textile Industry:

• Sewing machines
• Weaving and knitting machines

Entertainment:

• Animatronics and robotics in films
• Motion control in stage shows

Telecommunications:

• Antenna position control
• Fiber optic alignment systems

Food and Beverage:

• Automated packaging machines
• Food processing equipment

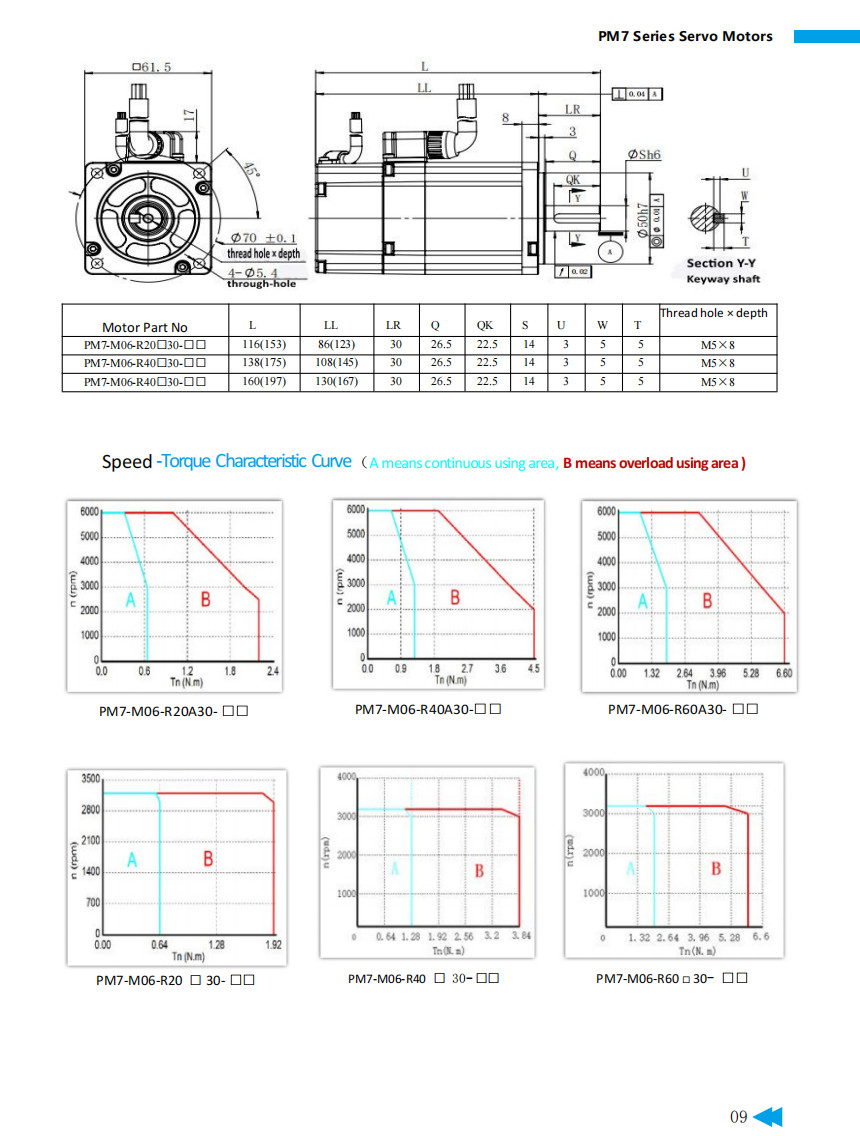

Key Specifications for this Flange Ø60mm Brushless Servo Motor :

• Motor Flange: 61.5 mm
• Rated Voltage: 24V DC to 48V to 220V or customized
• Rated Torque: 0.6N.m to 1.9N.m or Customized
• Rated Speed: 3000rpm or Customized
• Rated Power: 200W to 600W or Customized
• Brake or without brake

Remark:

• We offer design and production services for customized servo motors (OEM & ODM).

To see the product catalogue on our Brushless Servo Motors Φ40-180 mm , please

Check Here and download.
