110mm Servomotor Servo Motor with encoder 1200W 1500W 1800W 2000W 2500W 7.2N.m

Product Tag: 110mm Servo Motor , 110mm Servomotor , 110mm AC Servo Motor , 750W Servo Motor, 1000W Servo Motor , 1200W Servo Motor , 1300W Servo Motor , 1500W Servo Motor , 1800W Servo Motor , 2000W Servo Motor , 2500W Servo Motor

The Brushless Servo Motors from Panda Electronics feature the following characteristics:

• Special Slot Design: The motor has an exceptionally low mutual inductance, effectively close to zero.
• Optimized Heat Dissipation: The motor features enhanced thermal management, allowing for faster heat dissipation and a more uniform temperature distribution.
• Structural Optimization: The motor's structure is designed for robust performance, increasing durability and reliability.
• Special Core Design: The motor operates with low noise, low vibration, and minimal torque ripple, resulting in smoother operation.
• High Slot Fill Factor: With a larger wire diameter, the motor has lower resistance and generates 20% less heat due to a higher slot fill factor.
• Open-Ended Shaft Design: This design allows for the installation of various encoders, providing customers with more options.
• Optimized Permanent Magnet Design: Utilizing advanced rare-earth permanent magnet materials with exceptionally high intrinsic coercivity, the motor exhibits strong demagnetization resistance.
• High-Resolution Encoder: Equipped with a high-resolution encoder that increases resolution by 64 times, the motor achieves higher and more precise positioning.
• Advanced Manufacturing Techniques: Manufactured in Japan using cutting-edge technology, the motor boasts high reliability, stability, and consistent performance.
• High-Performance Core: The core is designed for high magnetic load, minimal iron loss, and is compact and lightweight, with a size reduction of over 20%.
• New Magnetic Field Analysis Technology: The motor features a ten-level optimized rotor design, delivering significantly increased output and an overload capacity of 3 to 4 times.
• Supporting Customization: Covering diameters ranging from 40 mm to 180 mm, our Brushless Servo Motors offer versatility, we readily accommodate customization for varying dimensions and specifications.

Applications of Brushless Servo Motors:

Industrial Automation:

• Robotics (robot arms, pick and place)
• CNC machines
• Assembly lines

Aerospace:

• Flight control systems
• Positioning systems for aircraft

Automotive:

• Power steering systems
• Electric throttle control
• Automatic transmission systems

Consumer Electronics:

• Printers (particularly 3D printers)
• Cameras (autofocus and image stabilization)
• Drones (control of flight dynamics)

Medical Equipment:

• Surgical robots
• MRI machines
• Prosthetic devices

HVAC Systems:

• Control of dampers and valves for heating and air conditioning systems

Textile Industry:

• Sewing machines
• Weaving and knitting machines

Entertainment:

• Animatronics and robotics in films
• Motion control in stage shows

Telecommunications:

• Antenna position control
• Fiber optic alignment systems

Food and Beverage:

• Automated packaging machines
• Food processing equipment

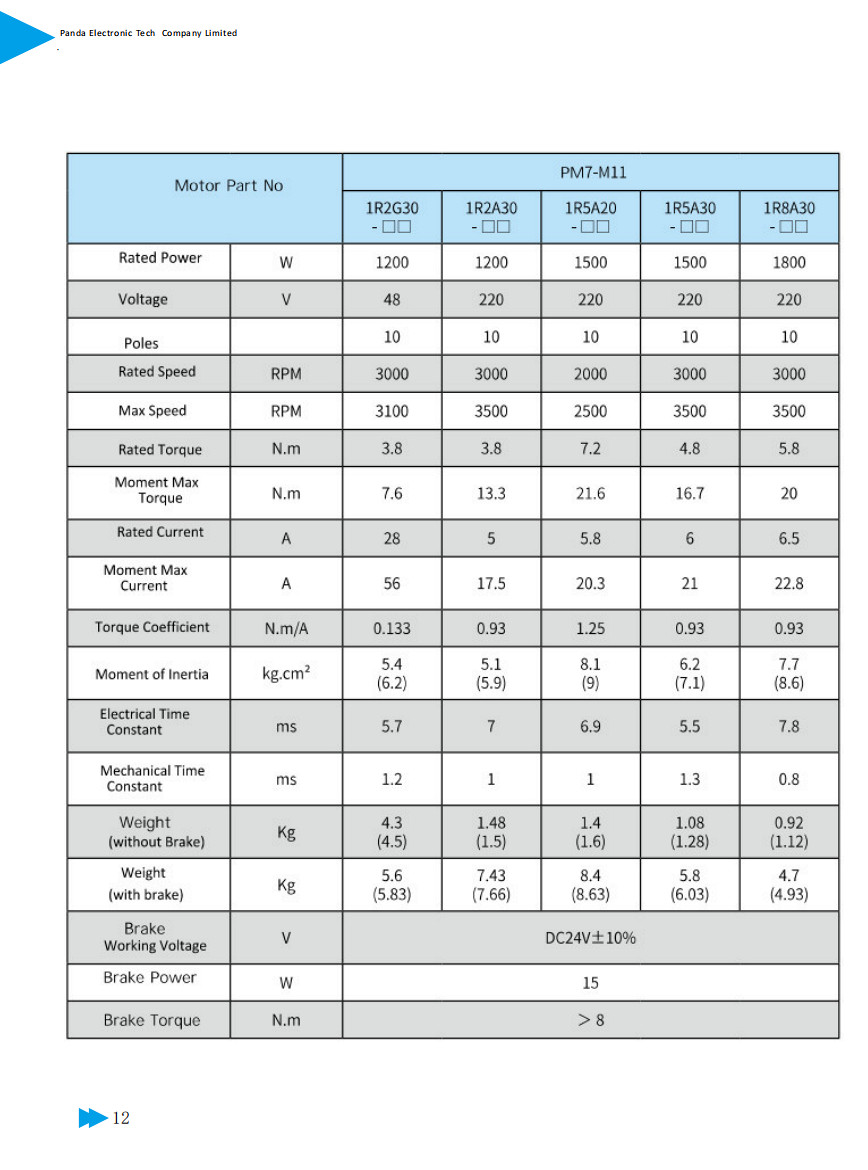

Key Specifications for this Flange Ø110mm Brushless Servo Motor :

• Motor Flange: 111mm
• Rated Voltage: 48V to 220V or customized
• Rated Torque: 3.8N.m to 7.2N.m or customized or Customized
• Rated Speed: 3000rpm or Customized
• Rated Power: 1200W to 1800W or Customized
• Brake or without brake

Remark:

• We offer design and production services for customized servo motors (OEM & ODM).

To see the product catalogue on our Brushless Servo Motors Φ40-180 mm , please

Check Here and download.

Dongguan Panda Electronics Tech Co., LTD is a comprehensive enterprise that integrates the development, design, and manufacturing of high precision Slotless BLDC Motors, Slotted Brushless DC Motors, Brush Motors, DC Gear Motors, and Servo Motors.

Additionally, we offer comprehensive solutions encompassing Motors, Gearboxes, Encoders, Brakes, and Drivers. Our product portfolio finds wide application across various sectors including military, aerospace, medical equipment, electric tools, robotics, industrial automation, and inspection equipment. The R&D and sales teams comprise professionals with extensive experience garnered from reputable industry players.

Armed with profound expertise, they offer tailored recommendations and product selection guidance, crafting unique and highly competitive solutions for diverse industries and clients.

Geographically, our footprint spans developed regions such as North America, Europe, Japan, and South Korea, where we've earned accolades and gratitude from discerning customers.

Please feel free to contact us; we guarantee a response within 8 working hours.
