    Compact 22mm Planetary Gear Motor 24V 1500mNm 3.0RPM Customizable

    Ask Lasest Price
    Brand Name : PM
    Model Number : PM22-Gear Ratio--RE2338BL
    Certification : REACH & CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 50000PCS per Month
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

    Compact 22mm Planetary Gear Motor 24V 1500mNm 3.0RPM Customizable

    22mm Planetary Gear Motor 9V to 24V Gear Reduction Motor 1500mNm 3.0RPM to 2857RPM Customizable

    Product Tag: 22mm Gearbox Motor, 22mm DC Gear Motor , 22mm Reduction Motor , 22mm DC Geared Motor , 22mm Gear Reduction Motor , 22mm Gear Reducer Motor , 22mm Gearhead Motor , 22mm DC Reduction Motor , 22mm Planetary Gear Motor , 22mm Planetary Gearmotor , 22mm Brush DC Gear Motor


    Coreless brush gear motors are a type of electric motor that features a coreless rotor and brush commutation.

    They have a rotor made of lightweight wire coils, which makes them faster and more efficient.

    They also use carbon brushes to move electricity to the rotor smoothly and have a gear system that helps control speed and torque.


    Advantages of Coreless Gear Motors:


    • Energy Efficiency: These motors are champs at conserving energy due to their coreless design, making them incredibly efficient.
    • Lightweight Wonder: With no heavy iron core weighing them down, they’re perfect for portable tech.
    • Quick and Agile: Their low inertia means they can change speed in an instant—perfect for dynamic applications.
    • Compact Power: Small yet powerful, these motors can fit into spaces where traditional motors simply can’t go.
    • Need for Speed: Thanks to a lighter rotor, they can achieve impressive speeds, helping you get things done faster.
    • Torque Master: The fine wire coils allow for better current flow, leading to stronger torque performance.

    Applications of Coreless Gear Motors:


    • Robotics: Micro coreless gear motors are great for making robot joints move fast and with a lot of strength.
    • Model Making: These small motors help model planes and cars go really fast and pull off stunts.
    • Medical Devices: They’re super important in medical gear, helping machines like surgical robots move exactly where they need to.
    • Automation Equipment: Tiny coreless gear motors are used to control things like automatic doors and vending machines perfectly.

    Currently, our brush DC gear motors are available in a diverse range of sizes, from 12mm to 57mm in diameter.

    Key Specifications for this Ø22mm dc brushed gear motor:

    • Gearbox Outer Diameter: 22 mm
    • Motor Outer Diameter: 23mm
    • Rated Voltage: 9V DC to 24V DC or customized
    • Gearbox Length: 21.4mm to 38.4mm
    • Reduction Ratio: Wide range from 1: 3.5 to 1: 3061.3
    • Rated Torque: wide range from 27.4mNm to 1500mNm or Customized
    • Rated Speed: wide range from 3.0RPM to 2857RPM or Customized

    Remark:

    • Please contact us for detailed specifications and drawings of the geared motor you need.
    • We offer design and production services for customized geared motors (OEM & ODM).

    If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing

    products at a more economical price point.


    To see the product catalogue on our Brushed DC Gear Motors Φ12-57 mm , please


    Check Here and download.

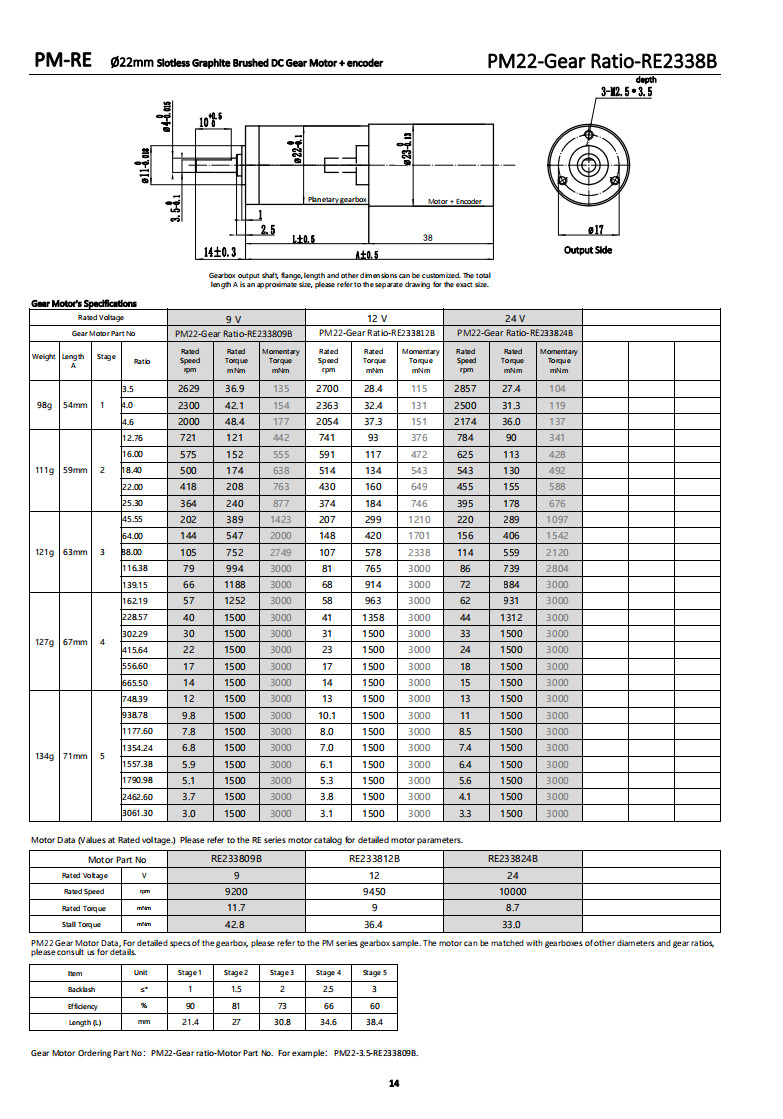

    Please review the standard data and dimensions of the gear motor below. Please note that we can provide deep customization

    based on your size and data requirements.
