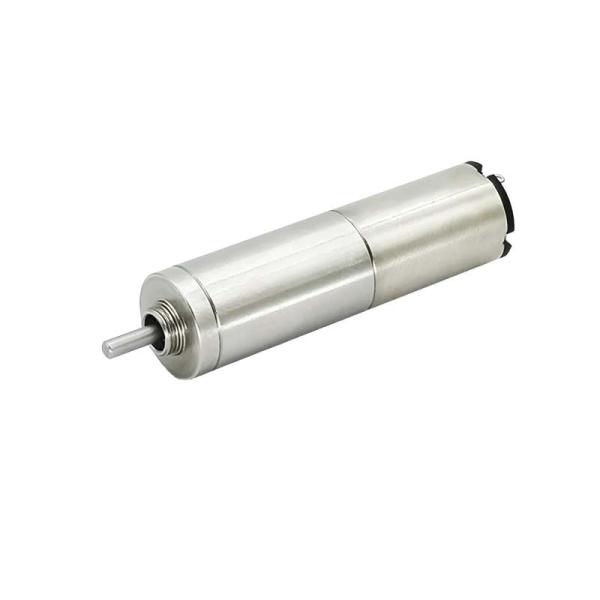

13mm DC Gear Motor 3V to 15V Planetary Reduction Motor 400mNm 4.08RPM to 2417RPM Customizable

Product Tag: 13mm Gearbox Motor, 13mm DC Gear Motor , 13mm Reduction Motor , 13mm DC Geared Motor , 13mm Gear Reduction Motor , 13mm Gear Reducer Motor , 13mm Gearhead Motor , 13mm DC Reduction Motor , 13mm Planetary Gear Motor , 13mm Planetary Gearmotor , 13mm Brush DC Gear Motor

Coreless brush gear motors are a type of electric motor that features a coreless rotor and brush commutation. They’re a neat type of electric motor that doesn’t have the heavy iron core you’d find in traditional ones.

Instead, they use lightweight wire coils for the rotor, making them super efficient and quick to respond. Plus, they use carbon brushes to smoothly transfer electricity and come with a gear train for better torque control

Advantages of Coreless Gear Motors:

• Energy Saver: Thanks to their coreless design, these motors waste less energy, making them super efficient.
• Featherweight: Without a heavy iron core, they’re much lighter, which is a big plus for portable gadgets.
• Quick to React: They can speed up and slow down in a flash because of their low inertia.
• Tiny but Mighty: Their small size means you can fit them just about anywhere.
• Speedy: With a lighter rotor, these motors can spin really fast, helping you move quicker.
• Strong Torque: The fine wire coils help distribute current evenly, giving you more torque when you need it.

Applications of Coreless Gear Motors:

• Robotics: If you’re into robotics, micro coreless gear motors are perfect for making those joints move quickly and powerfully.
• Model Making: For hobbyists, these small motors are what you need to get your model planes and cars zooming with speed and torque.
• Medical Devices: In the medical field, these motors help equipment like surgical robots and instruments move exactly where they need to go.
• Automation Equipment: Tiny coreless gear motors are great for controlling things like automatic doors and vending machines, making everything work smoothly.

Currently, our brush DC gear motors are available in a diverse range of sizes, from 12mm to 57mm in diameter.

Key Specifications for this Ø13mm dc brushed gear motor:

• Gearbox Outer Diameter: 12 mm
• Motor Outer Diameter: 13mm
• Rated Voltage: 3V DC to 15V DC or customized
• Gearbox Length: 14.3mm to 25.5mm
• Reduction Ratio: Wide range from 1: 3.5 to 1: 2036.2
• Rated Torque: wide range from 6.3mNm to 400mNm or Customized
• Rated Speed: wide range from 5.0 RPM to 2914RPM or Customized

Remark:

• Please contact us for detailed specifications and drawings of the geared motor you need.
• We offer design and production services for customized geared motors (OEM & ODM).

If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing

products at a more economical price point.

To see the product catalogue on our Brushed DC Gear Motors Φ12-57 mm , please

Check Here and download.

Please review the standard data and dimensions of the gear motor below. Please note that we can provide deep customization

based on your size and data requirements.

Dongguan Panda Electronics Tech Co., LTD is a comprehensive enterprise that integrates the development, design, and manufacturing of high precision Slotless BLDC Motors, Slotted Brushless DC Motors, Brush Motors, DC Gear Motors, and Servo Motors.

Additionally, we offer comprehensive solutions encompassing Motors, Gearboxes, Encoders, Brakes, and Drivers. Our product portfolio finds wide application across various sectors including military, aerospace, medical equipment, electric tools, robotics, industrial automation, and inspection equipment. The R&D and sales teams comprise professionals with extensive experience garnered from reputable industry players.

Armed with profound expertise, they offer tailored recommendations and product selection guidance, crafting unique and highly competitive solutions for diverse industries and clients.

Geographically, our footprint spans developed regions such as North America, Europe, Japan, and South Korea, where we've earned accolades and gratitude from discerning customers.

Please feel free to contact us; we guarantee a response within 8 working hours.
